Version 7.4.0

Release date: 3/16/20

Please note:

As of this release, new functionality may be written using ES6+ syntax, which requires modern browsers to run the library. Transpiled files for ES5 (ECMAScript/ECMAScript 2009) support will continue to be provided as a courtesy, but compatibility cannot be guaranteed.

See the 7.3.0 to 7.4.0 upgrade notes for information about upgrading to this version.

Deprecated functions

  • Note: All deprecated functions are being maintained in the library for backward compatibility.

  • CIQ.addResizeListener — Use CIQ.UI.addResizeListener.

  • CIQ.removeResizeListener — Use CIQ.UI.removeResizeListener.

  • Native prototype extensions have been deprecated, including:

    • method.ciqInheritsFrom — Use CIQ.inheritsFrom.

    • string.capitalize — Use CIQ.capitalize.

    • context.dashedLineTo — Use native CanvasRenderingContext2D methods such as moveTo(), lineTo() and setLineDash(). For example, to draw a horizontal dashed line across the center of the screen:

      var canvas = stxx.chart.backgroundCanvas;
var ctx = canvas.getContext("2d");
ctx.beginPath();
ctx.setLineDash([10, 10]);
ctx.moveTo(0, canvas.height/2);
ctx.lineTo(canvas.width, canvas.height/2);
ctx.stroke();

    • context.stxLine — Use native CanvasRenderingContext2D methods such as moveTo() and lineTo(). For example, to draw a thick blue line diagonally across the screen:

      var canvas = stxx.chart.backgroundCanvas;
var ctx = canvas.getContext("2d");
ctx.beginPath();
ctx.strokeStyle = "blue";
ctx.lineWidth = 2;
ctx.moveTo(0, 0);
ctx.lineTo(canvas.width, canvas.height/2);
ctx.stroke();

    • context.stxCircle — Use native CanvasRenderingContext2D methods such as arc(). For example, to draw a red circle in the center of the screen:

      var canvas = stxx.chart.backgroundCanvas;
var ctx = canvas.getContext("2d");
ctx.beginPath();
ctx.fillStyle = "red";
ctx.arc(canvas.width/2, canvas.height/2, 100, 0, 2 * Math.PI);
ctx.fill();

New features

  • Elliott Wave drawing tool

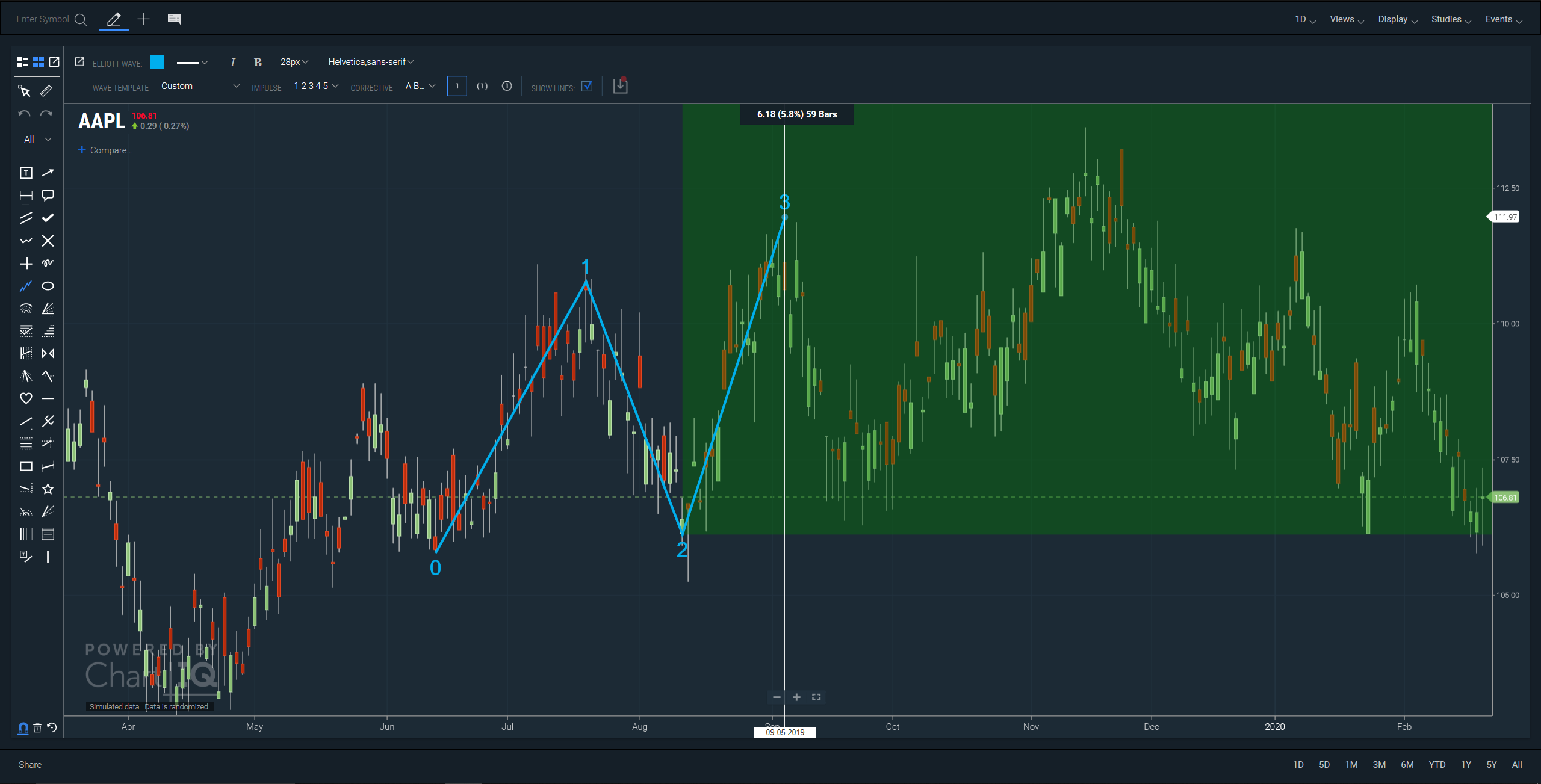

    Elliott Wave drawing with drop zone and customized styling Figure. Elliott Wave drawing with drop zone and customized styling.

    The Elliott Wave principle is a technical analysis methodology for studying market cycles and predicting market trends. The Elliott Wave drawing tool enables you to identify and draw Elliott Waves on time series charts. The tool automatically labels impulse and corrective waves with the appropriate step in the wave count. A “drop zone” indicates where the next wave in the sequence can be drawn. The drawing tool magnet snaps the drawing cursor to the time series data points to precisely position wave lines.

    Wave magnitudes ranging from Grand Supercycle to Sub-Minuette are supported, along with a variety of wave count numbering and labeling styles.

  • Term Structure

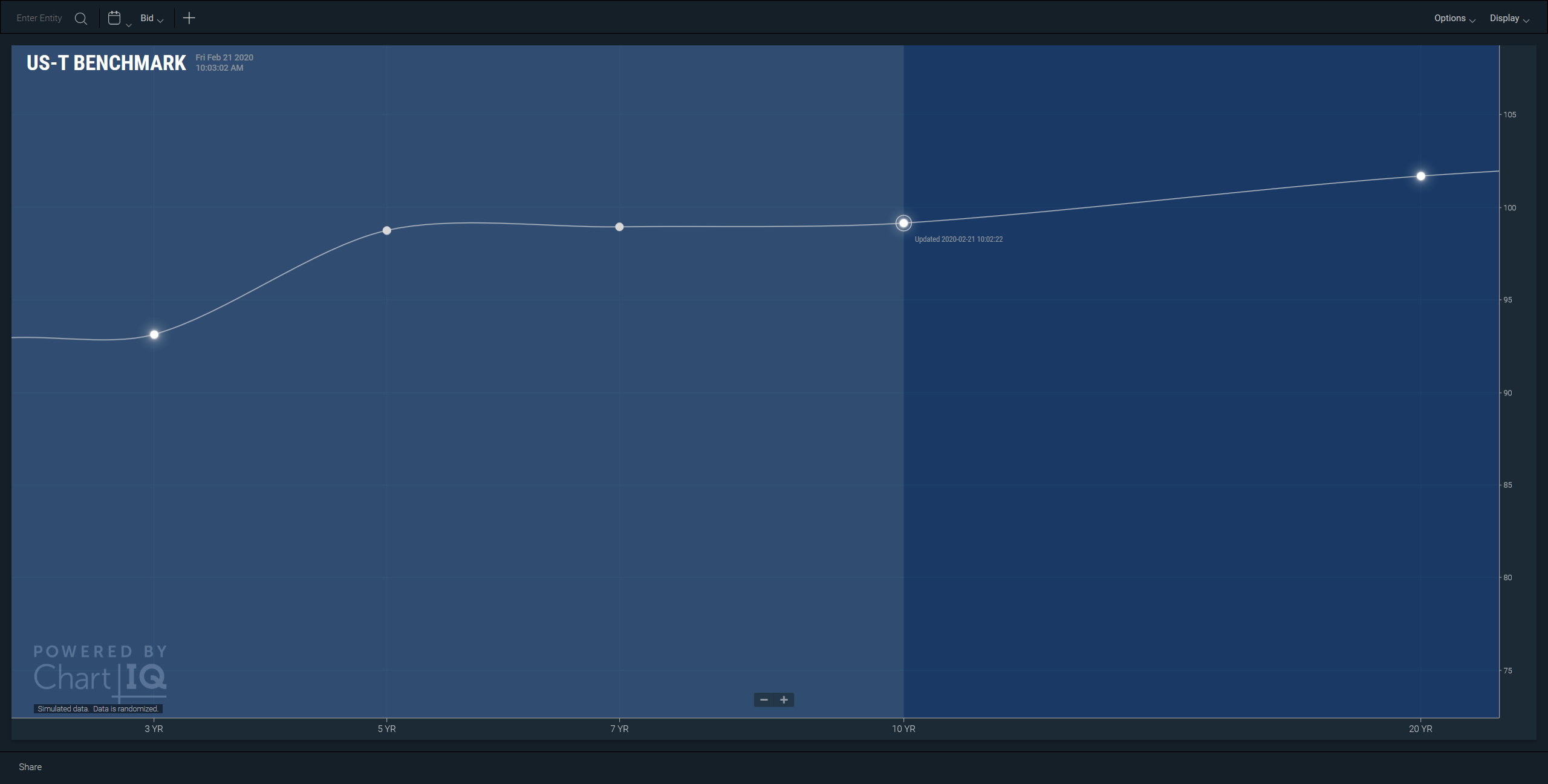

    Term structure chart zoomed in Figure. Term structure chart zoomed in showing fresh data point highlighting and last update time stamp.

    The Term Structure product adds new usability and analysis features:

    • Fresh data points — Term structure charts now highlight data points that have been updated within a user-configurable time frame, such as the last 10 minutes. Fresh data point highlighting helps you quickly spot instruments that are actively changing.

    • Last update time stamp — Trades and other actions continually change the values plotted for term structure instruments. Now, a time stamp of the most recent update keeps you informed about an instrument's activity. When your mouse hovers over a data point, a tooltip appears, displaying the date and time of the last update. The tooltip can be turned on or off from a new Options menu (on sample-template-term-structure.html).

    • Pan and zoom — Term Structure charts can now pan and zoom. New UI controls enable you to zoom in for a close look at chart details or zoom out for a high-altitude view. Swipe the chart left or right to move more data into view.

    • Instrument Time Series — Term structures compare the most recent values of a group of instruments; for example, the current yield on a series of bonds. But behind every instrument in a term structure is a time series of values. Now, you can select an instrument's data point and open a new chart that displays a time series of the instrument's historical values, such as the price of the 10-year bond over hours, days, months, or years. Instrument time series provide a look at the history behind term structure instruments.

    • CIQ.TermStructure constructor function has added the following parameters:

      • showcaseFreshPoints — Indicates whether recent data updates should be highlighted to call attention to the update.
      • pointFreshnessTimeout — The amount of time in minutes after which data points go stale.
      • showUpdateAnimations — Specifies whether to animate changes to data point values.
      • showUpdateStamp — Indicates whether an update time stamp should appear when the mouse hovers over data points.
      • showUpdateStampSeconds — Specifies whether the update time stamp should display seconds.
      • maxZoom — The maximum multiple to which the chart scales when zooming.

    • New CIQ.Market.Symbology.encodeTermStructureInstrumentSymbol function encodes the string identifier for an instrument in a term structure chart.

    • New CIQ.TermStructure#findHighlights function determines whether the user has either tapped or moused over a data point and, if so, includes in the return object the time stamp of the last update of the data point.

    • New CIQ.TermStructure#formatTimeStamp function formats a date and time.

    • New CIQ.TermStructure#zoomSet function zooms the chart in and out. Overrides the default CIQ.ChartEngine#zoomSet method.

    • New CIQ.TermStructure#cancelUpdateAnimations function removes all active update animations.

    • New CIQ.TermStructure#setShowcaseFreshPoints function sets the value of the chart engine layout parameter that indicates whether or not to highlight fresh data points.

    • New CIQ.TermStructure#setPointFreshnessTimeout function sets the value of the chart engine layout parameter that specifies the amount of time after which data points go stale.

    • New CIQ.TermStructure#setUpdateAnimations function sets the value of the chart engine layout parameter that specifies whether to animate changes to point values.

    • New CIQ.TermStructure#setShowUpdateStamp function sets the value of the chart engine layout parameter that specifies whether the update time stamp should appear for data points the user has tapped or moused over.

    • New CIQ.UI.CurveEdit UI Helper function enables term structure curve interaction by means of context menu options.

    • New CIQ.UI.CurveEdit.launchTimeSeries function opens a window and loads a time series chart for a selected term structure instrument.

    • New cq-freshness-dialog web component enables users to set the amount of time within which data point updates are considered recent, or fresh. See also CIQ.TermStructure#setPointFreshnessTimeout and CIQ.TermStructure#setShowcaseFreshPoints.

  • D3 graphics

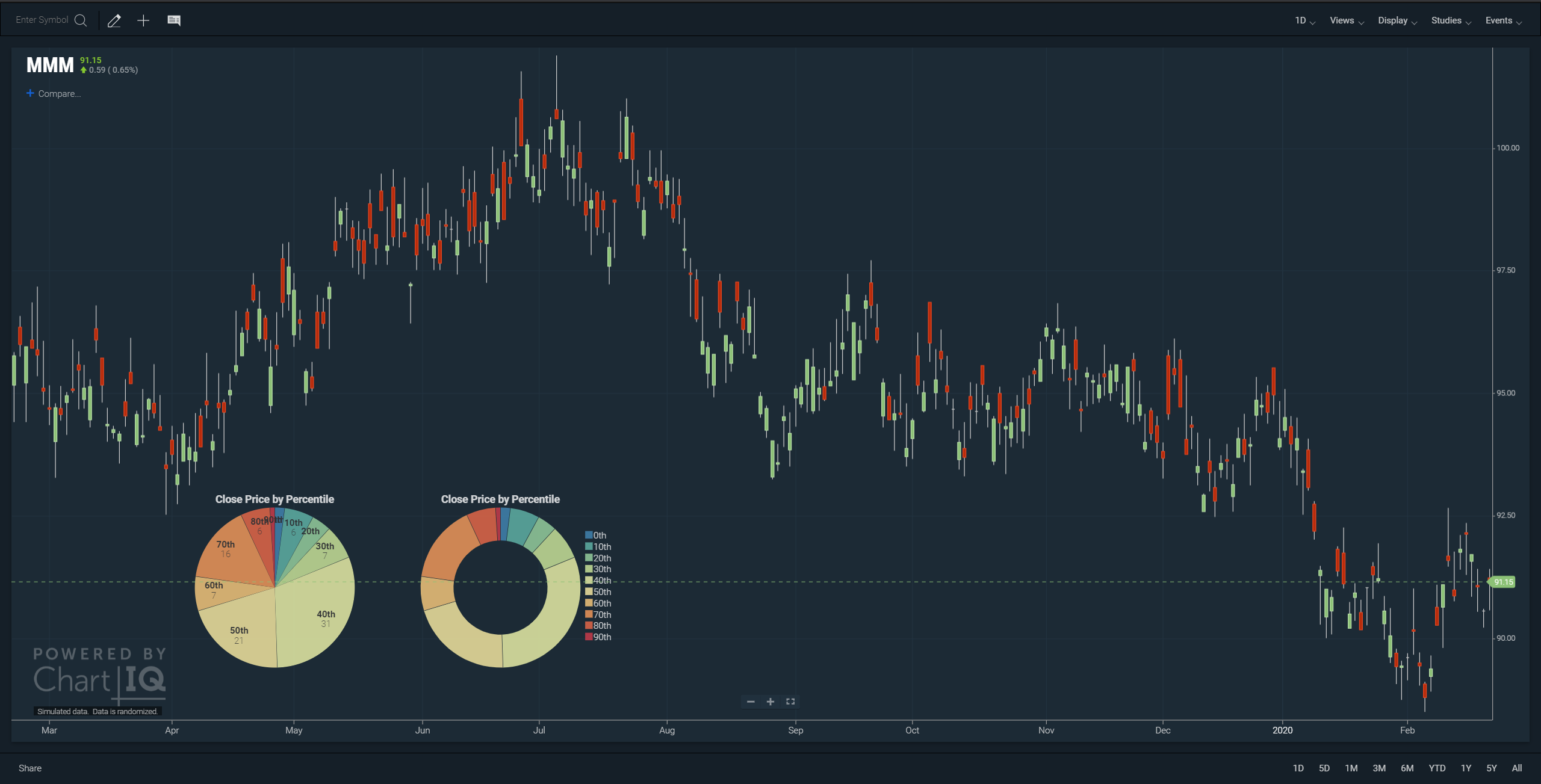

    Time series with pie chart and donut chart Figure. Time series with pie chart and donut chart.

    A new set of methods designed to leverage D3.js charts from within the charting engine are now part of the package. The methods enable developers to use their data loading API (already created to feed time series charts) with D3 charts — all while using the familiar ChartIQ API. The enhancement includes built-in wrappers for pie- and donut-style proportional charts, as well as methods for creating your own wrappers to consume any other D3 rendering of your choice. More built-in wrappers are planned for upcoming releases.

    • New CIQ.SVGChart.renderPieChart function draws a pie or donut chart SVG graphic using D3.

    • New CIQ.Visualization constructor function creates a DOM object capable of receiving a data stream. The object changes as a result of the incoming data.

      CIQ.Visualization contains the following properties:

      • container — The DOM container that hosts the DOM object
      • attributes — The attributes used to render the DOM object
      • data — The data used to render the DOM object
      • object — The DOM object created by the rendering function

      and prototype functions:

      • destroy — Removes the DOM object
      • draw — Draws the DOM object in its container
      • setAttributes — Adds or changes the visualization object attributes
      • updateData — Adds or changes the visualization object data

    • New CIQ.ChartEngine#embedVisualization convenience function embeds a CIQ.Visualization in the canvas area.

  • Drawing tool keyboard shortcuts

    The following drawing tools can now be accessed by keyboard shortcuts:

    Tool Windows Macintosh
    Line Alt+L Option+L
    Vertical (line) Alt+V Option+V
    Horizontal (line) Alt+H Option+H
    Annotation Alt+T Option+T
    Rectangle Alt+R Option+R
    Arrow Alt+A Option+A

    Note: The letter can be lowercase (for example, Alt+a) or uppercase (Alt+A, shift key or caps lock engaged).

    The modifier Ctrl can also be used in the key combination. For example, both Alt+R and Ctrl+Alt+R activate the Rectangle tool. Ctrl can be included when the Alt+key combination is already assigned to a web browser feature or an application on the user's device.

    ◦ New cq-tool-shortcut attribute enables you to add keyboard shortcuts to the drawing palette tools. The new attribute is applied to cq-item tags contained in the cq-drawing-palette web component.

DOM management enhancements

Drawing enhancements

Charting enhancements

Web component enhancements

  • The cq-lookup web component added an optional cq-exchanges attribute to specify an override list of financial instrument exchanges for use by the lookup driver (see CIQ.ChartEngine.Driver.Lookup).

Miscellaneous API enhancements

  • New CIQ.inheritsFrom function creates a template for JavaScript inheritance. Replaces Function#ciqInheritsFrom.

  • New CIQ.capitalize function capitalizes the first letter of a string. Replaces String#capitalize.

  • New CIQ.isSafari property indicates whether the chart is running on a Safari browser.

  • CIQ.TFC.displayDialog function now allows the id parameter to be a CSS selector. Formerly, the argument had to be the HTMLElement that represents the dialog to be displayed. Now, the function will use a CSS selector to find the element for you; for example, dialogNode = document.querySelector(id).

  • CIQ.resizeObserver function executes a listener function if the element being observed has been resized.
